31.80310.63

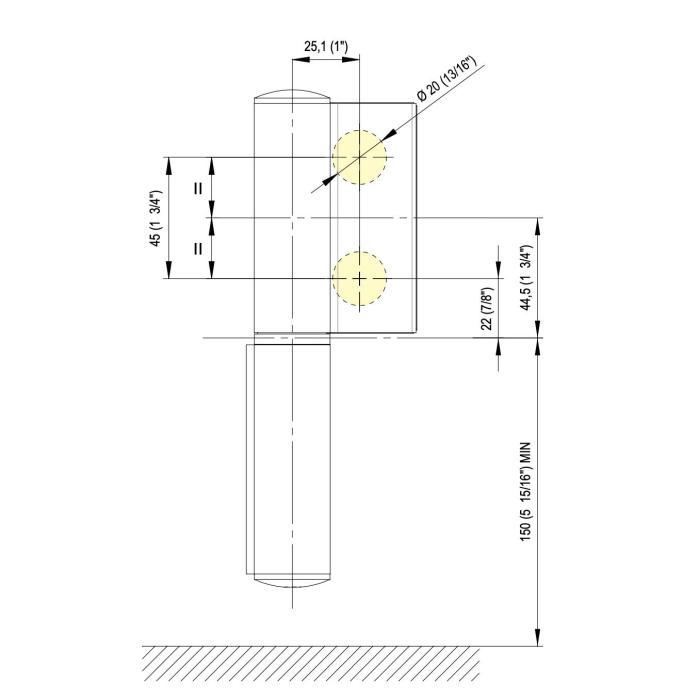

Free-running hinge EVO EV 835E10 N SOL, aluminium, anodized 20 micron, Glass thickness 8 - 19 / 21.52 mm, glass/wall, DIN left
Allgemeine Eigenschaften
| Material | aluminium |
| Ausführung | anodized 20 micron |
| Montage | glass/wall, DIN left |
| Glasstärke | 8 - 19 / 21.52 mm |
| Verkaufseinheit (VE) | Stück |
| Tragkraft | 100 kg/pair |
Produkt-Information
- further finishes on request
Bezeichnung
WITHOUT hydraulics, can be installed on doors with frame profile, rebate depth 30 - 50 mm, opening angle 180°, min. door width 800 mm, max. door width 1000 mm. Can be used in combination with hydraulic hinge EVO EV 835E10 N or EV 835E11 N if a smaller or lighter hydraulic door is required or if the design of EVO EV 835E10 N or EV 835E11 N is to be adopted, but not the hydraulic function
-
